SSA小量样品适配器转子适用于小量样品的流变特性评估，SSA小量样品适配器转子 配不同粘度计主机测量范围不同，其中SC4-27可购买一次性转子。
美国博勒飞SSA小量样品适配器转子-技术参数：
|
|
|||
|
SPINDLE |
SAMPLE CHAMBER |
SHEAR RATE |
SAMPLE VOLUME |
|
SC4-18 |
13R |
1.32N |
6.7mL |
|
SC4-31 |
13R |
0.34N |
9.0mL |
|
SC4-34 |
13R |
0.28N |
9.4mL |
|
SC4-16 |
8R |
0.29N |
4.2mL |
|
SC4-25Z(316 s/s only) |
13R |
0.22N |
16.1mL |
|
SC4-21† |
13R |
0.93N |
7.1mL |
|

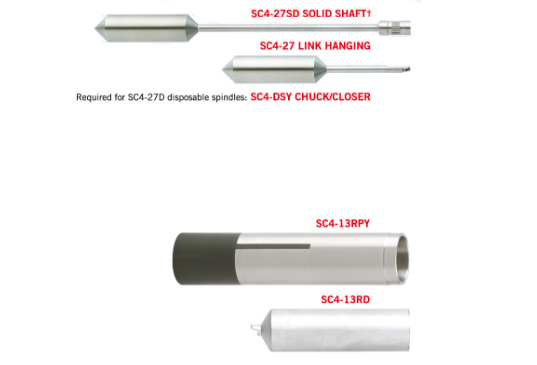

SC4-27*† |
13R |
0.34N |
10.4mL |
|
SC4-15 |
7R |
0.48N |
3.8mL |
|
SC4-28 |
13R |
0.28N |
11.0mL |
|
SC4-29 |
13R |
0.25N |
13.5mL |
|
SC4-14 |
6R |
0.40N |
2.1mL |
|
SC4-DIN-82 |
- |
1.29N |
1.5mL |
|
SC4-DIN-83 |
- |
1.29N |
1.5mL |
|
CHAMBER |
TYPE |
||
|
SC4-13R |
Sample Chamber w/0 temperature probe |
||
|
SC4-13RPY |
Sample Chamber w/RTD temperature probe&cable |
||
|
SC4-8R |
Sample Chamber w/0 temperature probe |
||
|
SC4-8RPY |
Sample Chamber w/RTD temperature probe&cable |
||
|
SC4-7R |
Sample Chamber w/0 temperature probe |
||
|
SC4-7RPY |
Sample Chamber w/RTD temperature probe&cable |
||
|
SC4-6R |
Sample Chamber w/0 temperature probe |
||
|
SC4-6RPY |
Sample Chamber w/RTD temperature probe&cable |
||
|
SC4-13RD-100‡ |
Sample Chamber-Disposable,aluminum,100 units |
||
Note:‡须配置特殊的水浴夹套SC4-45YD
*也可作为SC4-27D-100=一次性样品杯，100个
†固定杆转子适用于SC4-21(Part No.SC4-215D)和SC4-27（Part No.SC4-275D）。
