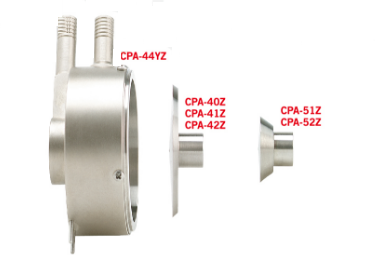

锥板粘度计转子分别为CPA-40Z、CPA-41Z、CPA-42Z、CPA-51Z、CPA-52Z,适用于小量样品DV3T、DV2T&DV1M,仅适用于仪器初次购买时选择。锥板粘度计转子可选不带温度探针的样品杯CPA-44YZ、带温度探针的样品杯CPA-44PYZ使用。
美国博勒飞锥板粘度计转子和样品杯-技术参数:
Wells/Brookfield转子和样品杯 |
||||
SHEAR |
SAMPLE |
CONE |
CONE |
|
SPINDLE |
RATE |
VOLUME |
ANGLE |
RADIUS |
CPA-40Z |
7.50Nsec‐¹ |
.5mL |
.8º |
2.4cm |
CPA-41Z |
2.00Nsec‐¹ |
2.0mL |
3º |
2.4cm |
CPA-42Z |
3.84Nsec‐¹ |
1.0mL |
1.5º |
2.4cm |
CPA-51Z |
3.84Nsec‐¹ |
.5mL |
1.5º |
1.2cm |
CPA-52Z |
2.00Nsec‐¹ |
.5mL |
3º |
1.2cm |
CUP |
||||
CPA-44YZ |
Standard cup without temperature probe |
|||
CPA-44PYZ |
Standard cup with RTD temperature probe |
|||
PCPA-3YZ |
Cup with 1 purge fitting |
|||
PCPA-6YZ |
Cup with luer fitting and 1 purge fitting |
|||
PCPA-4YZ |
Cup with luer fitting and 2 purge fittings |
|||
PCPA-7YZ |
Cup with luer fitting and 4 purge fittings |
Note:1.Wells-Brookfield锥转子和样品杯已在出厂前成套校准。
已有样品杯,需重新订购锥转子的,须将样品杯一同返回厂家与新转子进行成套校准。
2.CPA样品杯和转子与CPE的一致。
